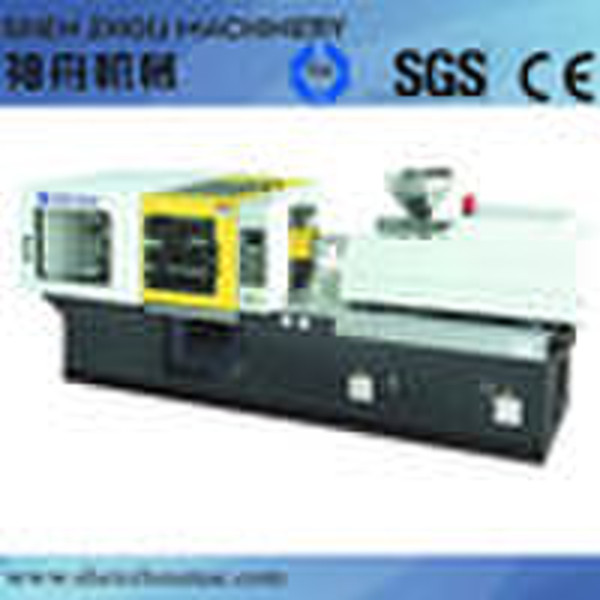

plastic injection molding machine SZ-1300A

Injection molding machine technical parameter: ITEM UNIT SZ-1300A MAX. CLAMPING FORCE KN 1300 MAX. OPENNING STROKE MM 400 SPACE BETWEEN TIE BARS MM 420X420 MOULD HEIGHT MM 160-440 MAX. DAYLIGHT MM 840 EJECTOR FORCE KN 31.4 EJECTOR STROKE MM 100 EJECTOR QUANTITY 5 SCREW DIAMETER MM 35 40 45 SCREW L/D RATIO L/D 24 21 18.7 THERORECTICAL SHOT VOLUM CM3 173 226 286 SHOT WEIGHT ( PS) G 158 206 260 INJECTION PRESSURE MPA 235 180 142 THERORECTICAL INJECTION RATE (PS) G/S 110 143 181 PLASTICISING CAPACITY G/S 13.8 19.7 27.1 SCREW TORQUE N.M 740 MAX. SCREW ROTATE SPEED R/MIN 250 INJECTION STROKE MM 180 PUMP MOTOR POWER KW 15 PUMP PRESSURE MPA 16 HEATING POWER KW 9.2 HEATING ZONE 4 SIZE M 4.7X1.25X1.85 NET WEIGHT T 5.6 OIL TANK CAPACITY L 420 INTERNATIONAL DESIGNATION 1600-785
