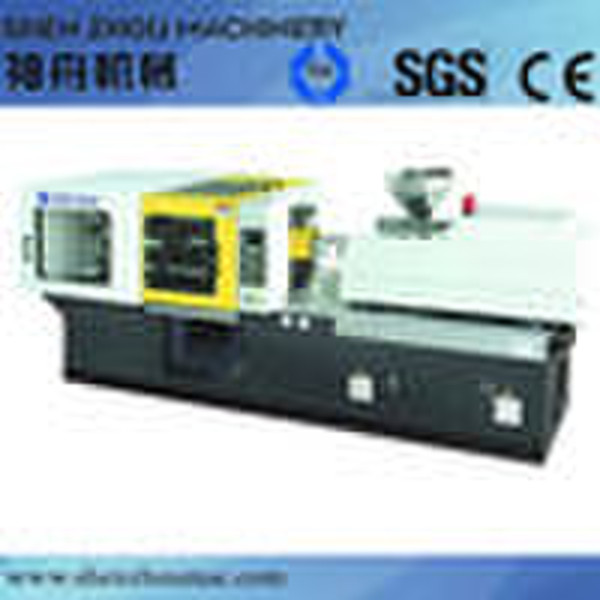

Plastic Injection molding machine(Injection moldin

Bigger model of Plastic Injection molding machin ITEM UNIT SZ-10000A MAX. CLAMPING FORCE KN 10000 MAX. OPENNING STROKE MM 1160 SPACE BETWEEN TIE BARS MM 1110X1110 MOULD HEIGHT MM 450-1200 MAX. DAYLIGHT MM 2360 EJECTOR FORCE KN 245 EJECTOR STROKE MM 350 EJECTOR QUANTITY 21 SCREW DIAMETER MM 100 110 120 130 SCREW L/D RATIO L/D 24.2 22 20.2 18.6 THERORECTICAL SHOT VOLUM CM3 4083 4941 5880 6901 SHOT WEIGHT ( PS) G 3715 4496 5350 6280 INJECTION PRESSURE MPA 206 171 143 122 THERORECTICAL INJECTION RATE (PS) G/S 695 841 1001 1175 PLASTICISING CAPACITY G/S 96 116 130 148 SCREW TORQUE N.M 8690 MAX. SCREW ROTATE SPEED R/MIN 110 INJECTION STROKE MM 520 PUMP MOTOR POWER KW 90 PUMP PRESSURE MPA 16 HEATING POWER KW 68.45 HEATING ZONE 6 SIZE M 12.38x2.8x3.5 NET WEIGHT T 60 OIL TANK CAPACITY L 1700 INTERNATIONAL DESIGNATION 10000-8410 (1) LCD COMPUTER WITH BIG DISPLAY SCREEN (2)COMPUTER LANGUAGE DISPLAY IN ENGLISH , RUSSIA , SPANISH, FARSI,ARAB (3) HYDRAULIC SYSTEM: ITALY, JAPAN , USA (4) LOW PRESSURE MOULD PROTECTION (5) MOVING PLATEN OPEN WITH LOW SPEED CONTROL (6)AUTOMATIC LUBRICATION .
