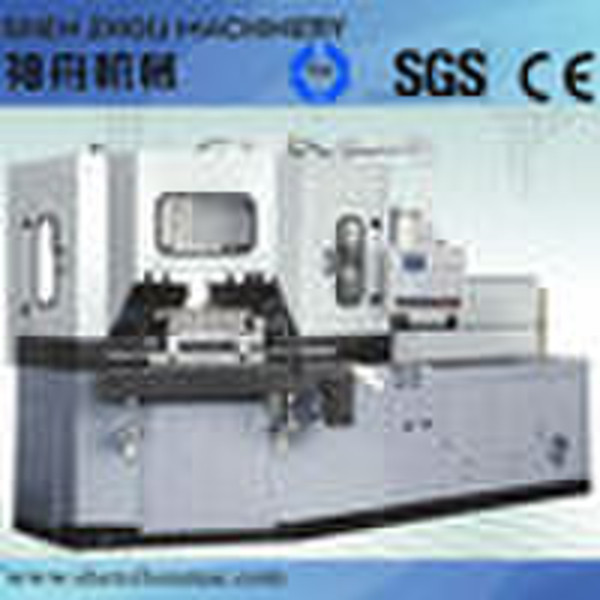

injection blow machine.

The new designs & characteristic1.It adopts only one girder for the injection and blowing positions. there will be more space on the work table, and then it is easy to install the moulds. the core rods gyration semidiameter is more then before, now the products height is increased to 175mm.2.Its hydraulic system adopts the Proportional Electro-Hydraulic Load Sensing Piston Pumps-Single Pump, it is energy-saving, high-efficiency. There is less return oil, when there is no load in the hydraulic system, oil temperature will be low, it can protect the hydraulic oil.3. Injection clamping moulding sections structure is improved, to ensure it can lock the injection mould better. 4. The work table is cast by ductile cast iron, and it is more thick, more strong and more steady. 5,.Figure is be improved, it will be hold much less space, and is looks nice. IBM35 Injection Blow Mouding Machine Main Technical ParametersNo.ItemUnitDataNo.ItemUnitData1 Dia of screwMm4013die-heating powerKwautomation2Max. the oretical capacityCm318614pressure of hydraulic systemMpa143Total power for cylinder-heatingKw6.515Max. working pressure of comp. airMpa1.24control force of injection moldQty316discharge rate of compressed airM3/min0.8m3/min5clamping force of injection moldKn35017consumption of cooling waterM3/h36opening strokeMm12018dimension of machine(L×W×H)Mm3100×1100×22007clamping force of blow moldKn3019 machine weightTapproximately 3.08opening stroke of blow moldmm12020range of formability productsL0.003-0.69idle timeS321height of formability productsMm≤175mm10Max. plate size of die(L×W)Mm300*20022 die of formability productsMm≤100mm11min. die thicknessMm18023conveyer belt Motor powerKw0.112motor powerKw1524total powerkw25
